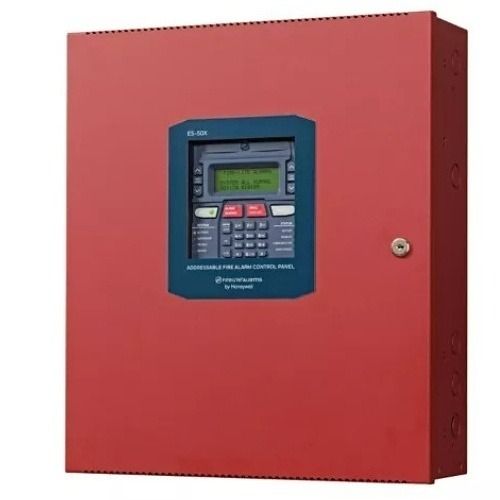

FireLite Alarms ES-50X 50-Point Addressable Control
FireLite Alarms ES-50X 50-Point Addressable Control
| Manufacturer Part Number | ES-50X |
|---|---|
| Features | Product OverviewThe Endurance Series ES-50X is a 50-point addressable fire alarm control panel that offers built-in dual path communications, programmable buttons and support for combined fire and CO addressable detection.
What’s IncludedES-50X Intelligent Addressable FACP with Communicator Plastic Bag Containing Screws, Cables, Key
Main Features
General InformationName: Fire-Lite ES-50X Addressable Fire Alarm Control Panel, 50-Point
Category: Fire-Lite Alarms by Honeywell, Fire, Fire Control Panels, Fire Alarm Control Panels, ADI Pro Rewards
UPC Code: 783008112622
Country of Origin: United States. Country of origin is subject to change.
ES-50X addressable fire alarm control panels come with pre-installed communicators. They support up to 50 addressable devices in any combination of detectors or modules. With an extensive list of powerful features, these FACPs program just like other Fire-Lite® addressable panels, yet fit into applications previously served only by conventional panels. The pre-installed IPOTS-COM is a dual technology (POTS and IP) communicator. The POTS transmits system status (alarms, troubles, AC loss, etc.) to a central station via the public switched telephone network. The IP communicator’s internet monitoring capability sends alarm signals over the internet saving the monthly cost of two dedicated business telephone lines. Although not required, the secondary telephone line may be retained providing backup communication over the public switched telephone line. & Remote and local programming of the control panels is possible using the FS-Tools upload/download utility. Programming databases can be uploaded/downloaded via the panel’s USB port (and USB cable) or via an Ethernet connection using the IPOTS-COM communicator. The USB port also allows for the download or upload of the entire program, history file, walk-test data, current status and system voltages by means of a USB flash drive. The power supply and all electronics are contained on a circuit board supported on a new quick-install chassis and housed in a metal cabinet. Features & Benefits:
|
Product Overview
What’s Included
Main Features
- Upload/Download panel programming database and flash firmware with USB thumb drive
- Addressable multi-criteria detector (smoke, heat, CO) with programmable response
- Addressable Sounder Bases
- Four programmable function keys
- Trouble indication for SLC devices not programmed
- Automatic discovery of "relay" versus "NAC" type control modules during auto-programming of SLC loop
- Integrated SWIFT display driver and annunciator built-in to panel
- Built in Class-A capability for all 4 NACs; no optional card required
General Information
ES-50X addressable fire alarm control panels come with pre-installed communicators. They support up to 50 addressable devices in any combination of detectors or modules. With an extensive list of powerful features, these FACPs program just like other Fire-Lite® addressable panels, yet fit into applications previously served only by conventional panels. The pre-installed IPOTS-COM is a dual technology (POTS and IP) communicator. The POTS transmits system status (alarms, troubles, AC loss, etc.) to a central station via the public switched telephone network. The IP communicator’s internet monitoring capability sends alarm signals over the internet saving the monthly cost of two dedicated business telephone lines. Although not required, the secondary telephone line may be retained providing backup communication over the public switched telephone line. &
Remote and local programming of the control panels is possible using the FS-Tools upload/download utility. Programming databases can be uploaded/downloaded via the panel’s USB port (and USB cable) or via an Ethernet connection using the IPOTS-COM communicator. The USB port also allows for the download or upload of the entire program, history file, walk-test data, current status and system voltages by means of a USB flash drive. The power supply and all electronics are contained on a circuit board supported on a new quick-install chassis and housed in a metal cabinet.
Features & Benefits:- Compatible with SWIFT® wireless devices
- Auto-programming (learn mode) reduces installation time (reports two devices set to the same address)
- Two independently programmable, built-in Style Z (Class A) or Style Y (Class B) NACs
- Selectable strobe synchronization for System Sensor®, Wheelock®, and Gentex® devices
- NAC end-of-line resistor matching
- Four programmable function keys for ease of maintenance
- Two programmable relays and one fixed trouble relay
- Built-in programmer
- Integral 80-character LCD display with backlighting
- UL: S624
- FM Approved
- CSFM: 7165-0075:0500
- FDNY: COA #6261
