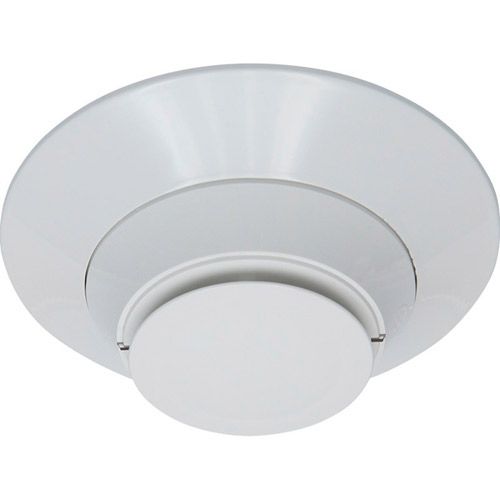

Fire-Lite SD365 Addressable Photoelectric Smoke Detector, LiteSpeed Only (Replaces SD355)

Be the first to review this product

Special Price $89.32

Regular Price $159.39 -44%

Availability: Available for Order

SKU

SD365

Notify me when the price drops

PHOTO DET WT, Fire-Lite Alarms-Honeywell-Us

The Fire-Lite SD365 Series addressable plug-in smoke detectors are designed for both performance and aesthetics. A new modern, sleek, contemporary design and enhanced optical sensing chamber are engineered to sense smoke produced by a wide range of combustion sources in accordance with more stringent code standards. Models include the SD365(A) photo detector, SD365T(A) photo thermal detector and SD365R(A) remote test capable detector for use with DNR(A)/DNRW. Available in both white (LiteSpeed protocol only) and ivory (CLIP and LiteSpeed protocols)

More Information
Manufacturer Part Number	SD365
Features	Product Overview SD365 Series intelligent plug-in smoke detectors are designed for both performance and aesthetics. A new modern, sleek, contemporary design and enhanced optical sensing chamber is engineered to sense smoke produced by a wide range of combustion sources in accordance with more stringent code standards. What’s Included SD365 Smoke Detector Mounting Base Trim Ring Main Features Two-wire SLC loop connection Stable communication technique with noise i mmunity Built-in tamper-resistant feature- functional test switch activated by external magnet-Walk test with address display Removable cover and insect-resistant screen for simple field cleaning Factory preset at 1.5% nominal sensitivity for panel alarm threshold level LED blinks when the unit is polled (communicating with the fire panel) and latches in alarm Low standby current Sealed against back pressure Designed and to mount directly on the surface or the electrical box Separate base with SEMS screws for wiring allows interchange of photoelectric, ionization and thermal sensors, optional relay, isolator, and sounder bases General Information Name: Fire-Lite SD365 Addressable Photoelectric Smoke Detector, LiteSpeed Only (Replaces SD355) Category: Fire-Lite Alarms by Honeywell, Fire, Fire Detection Devices & Accessories, Smoke Detectors, ADI Pro Rewards UPC Code: 783863051692

Write Your Own Review

Product Overview

SD365 Series intelligent plug-in smoke detectors are designed for both performance and aesthetics. A new modern, sleek, contemporary design and enhanced optical sensing chamber is engineered to sense smoke produced by a wide range of combustion sources in accordance with more stringent code standards.

What’s Included

SD365 Smoke Detector
Mounting Base
Trim Ring

Main Features

Two-wire SLC loop connection
Stable communication technique with noise i mmunity
Built-in tamper-resistant feature- functional test switch activated by external magnet-Walk test with address display
Removable cover and insect-resistant screen for simple field cleaning
Factory preset at 1.5% nominal sensitivity for panel alarm threshold level
LED blinks when the unit is polled (communicating with the fire panel) and latches in alarm
Low standby current
Sealed against back pressure
Designed and to mount directly on the surface or the electrical box
Separate base with SEMS screws for wiring allows interchange of photoelectric, ionization and thermal sensors, optional relay, isolator, and sounder bases

General Information

Name: Fire-Lite SD365 Addressable Photoelectric Smoke Detector, LiteSpeed Only (Replaces SD355)

Category: Fire-Lite Alarms by Honeywell, Fire, Fire Detection Devices & Accessories, Smoke Detectors, ADI Pro Rewards

UPC Code: 783863051692
