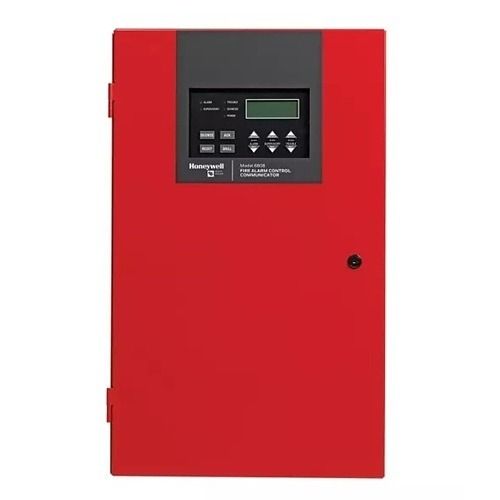

Silent Knight 006808 Silent Knight 6808 198-Point Single Loop Addressable Fire Alarm Control System (Replaces 5808)
Special Price $1,260.05 Regular Price $2,282.00 -45%
Availability: Available for Order
SKU
6808
Silent Knight 006808 Silent Knight 6808 198-Point Single Loop Addressable Fire Alarm Control System (Replaces 5808)
Silent Knight 006808 Silent Knight 6808 198-Point Single Loop Addressable Fire Alarm Control System (Replaces 5808)
| Manufacturer Part Number | 6808 |
|---|---|
| Features | Product OverviewThe 6808 is the latest intelligent addressable FACP (Fire Alarm Control Panel) from Silent Knight and is a direct replacement for the 5808 FACP. The 6808 has one SLC (signaling line circuit) loop for connecting addressable detectors, which can support 99 System Sensor® SK sensors and 99 SK modules or 127 Hochiki® SD devices per loop.
Main Features
General InformationName: Silent Knight 006808 Silent Knight 6808 198-Point Single Loop Addressable Fire Alarm Control System (Replaces 5808)
Category: Silent Knight by Honeywell, Fire, Fire Control Panels, Fire Alarm Control Panels, ADI Pro Rewards
UPC Code: 783196014210
|
Write Your Own Review
Product Overview
The 6808 is the latest intelligent addressable FACP (Fire Alarm Control Panel) from Silent Knight and is a direct replacement for the 5808 FACP. The 6808 has one SLC (signaling line circuit) loop for connecting addressable detectors, which can support 99 System Sensor® SK sensors and 99 SK modules or 127 Hochiki® SD devices per loop.
Main Features
- Complies with UL 864 10th Edition
- Built-in support for up to 99 IDP/SK detectors and 99 IDP/SK modules or 127 SD SLC devices
- Four Flexput circuits (3 As max) for NAC outputs or auxiliary power
- Selectable strobe synchronization for Amseco®, System Sensor, Wheelock®, and Gentex® devices
- 250 software zones and 250 output groups for flexible design options
- Built-in dual phone line, digital alarm communicator/ transmitter (DACT) with IP and optional cellular technologies
- Four line LCD display with 20 characters per line
- Built-in USB interface for quick and easy programming
- JumpStart® auto programming reduces installation time
- 13 preset notification cadence patterns (including ANSI® 3.41)
General Information
Name: Silent Knight 006808 Silent Knight 6808 198-Point Single Loop Addressable Fire Alarm Control System (Replaces 5808)
Category: Silent Knight by Honeywell, Fire, Fire Control Panels, Fire Alarm Control Panels, ADI Pro Rewards
UPC Code: 783196014210
